Bobcat S70

Double tap to zoom



Features

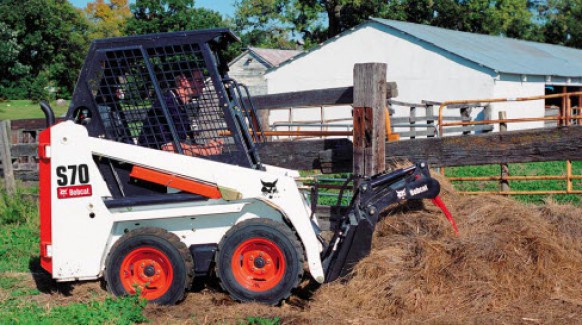

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It's the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.

Performance Features

Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.

Attachment Features

Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.

Specifications

Model Bobcat S70
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 23.5 hp
Turbocharged Engine N/A
PERFORMANCE
Rated Operating Capacity (SAE) 700 lb
Tipping Load 1512 lb
Operating Weight 2795 lb
Travel Speed 6.1 mph
Travel Speed (2-speed option) N/A
CAPACITIES
Fuel Tank 6.5 gal
HYDRAULIC SYSTEM
System Relief @ Quick Couplers 3,000 psi
Auxiliary Std Flow 9.8 gal/min
Auxiliary High Flow n/a
DIMENSION
Length 75.8 in
Length without Attachment 75.8 in
Length with Standard Bucket 97.3 in
Width 35.5 in
Width (with bucket) 36 in
Height 71.4 in
Height with Operator Cab 71.4 in
Height to Bucket Hinge Pin 94.5 in
Reach @ Maximum Height 15.8 in
Turning Radius 58.7 in
Wheelbase 28.4 in
FEATURES
Joystick Control N/A
Air Conditioning N/A
Adjustable Seat Standard
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Enclosure Optional
Sound Option Optional
Cab Heater Optional
Operating Lights Standard
Parking Brake Standard
Radio N/A
Rear Window Standard
Top Window  Optional
Lift-Arm Support Standard
Seat Belt Standard
Suspension Seat Optional
Two Speed Travel N/A
Deluxe Instrumentation N/A
Engine Shutdown N/A
Hydraulic Bucket Positioning Optional
High Flow Option N/A
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Power Bob-Tach N/A
ACS (Switchable Controls) N/A
Ride Control N/A
Rear Hydraulics N/A
Horn Standard
