Skid-Steer Loaders S530
Double tap to zoom

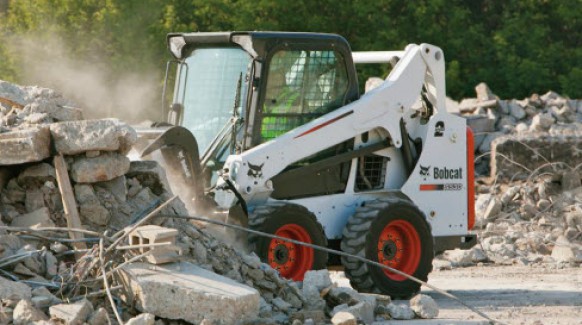

The Bobcat® S530, the smallest vertical-lift-path loader, is perfect for loading trucks or mixers where more reach and lift height are needed at the top of the lift cycle. Powered by a Tier 4 diesel engine, the S530 is a popular choice in its size class.
Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns
Uptime Protection Features
With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.
Climb into the large, comfortable cab and gain unbeatable visibility.
Reduce your operating costs through preventative maintenance that gets completed quickly.
Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.
|Emissions Tier (EPA)||Tier 4|
|Rated Operating Capacity (SAE)||1,850 lb|
|Tipping Load||3700 lb|
|Operating Weight||6480 lb|
|Travel Speed||7.4 mph|
|Travel Speed (2-speed option)||11 mph|
|Fuel Tank||24.8 gal|
|System Relief @ Quick Couplers||3,500 psi|
|Auxiliary Std Flow||17.1 gal/min|
|Auxiliary High Flow||n/a|
|Length without Attachment||104.6 in|
|Length with Standard Bucket||133 in|
|Width (with bucket)||68 in|
|Height with Operator Cab||77.8 in|
|Height to Bucket Hinge Pin||119 in|
|Reach @ Maximum Height||32.6 in|
|Turning Radius||79.7 in|
|BICS System (Interlock)||Standard|
|Two Speed Travel||Optional|
|Hydraulic Bucket Positioning||Optional|
|High Flow Option||N/A|
|Bob-Tach Attachment System||Standard|
|ACS (Switchable Controls)||Optional|
