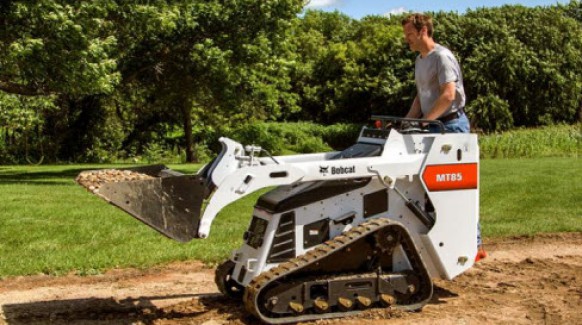

Bobcat MT85

Double tap to zoom



Features

Performance Features

Unmatched power to help you push through your toughest jobs.

Attachment Features

The industry leader in attachments and attachment-ready features.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Reduce your operating costs through preventative maintenance that gets completed quickly.

Specifications

Model Bobcat MT85
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 55 in³
Number of Cylinders 3
PERFORMANCE
Rated Operating Capacity (SAE) 850 lb
Tipping Load 0 lb
Operating Weight 3110 lb
Ground Pressure (Rubber) 4.9 psi
Travel Speed 4 mph
Travel Speed - Reverse 2.4 mph
CAPACITIES
Fuel Tank 7 gal
HYDRAULIC SYSTEM
Pump Capacity 12 gal/min
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow n/a
DIMENSION
Length 106.2 in
Width 35.6 in
Height 54.6 in
Height to Bucket Hinge Pin 80.9 in
Length of track on ground 40.6 in
Reach @ Maximum Height 18.6 in
FEATURES
Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Optional
Reverse Travel Stop Panel N/A
Wide Track Optional
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Standard
Locations
Ride-on Platform Standard
