Bobcat MT52

Mini Track Loaders MT52

Double tap to zoom



Features

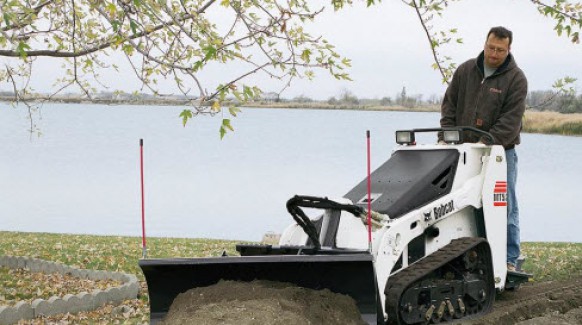

No need for wheelbarrows, shovels or other hand tools when you roll onto tight jobsites with the Bobcat® MT52 mini track loader. Just 3 feet wide with a bucket, the MT52 goes through gates, doorways or other narrow spaces with ease. It works and maneuvers in cramped spaces just as easily.

Performance Features

Unmatched power to help you push through your toughest jobs.

Attachment Features

The industry leader in attachments and attachment-ready features.

Comfort Features

More standard comfort features make hard work easier.

Specifications

Model Bobcat MT52
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 44 in³
Number of Cylinders 3
PERFORMANCE
Rated Operating Capacity (SAE) 520 lb
Tipping Load 1600 lb
Operating Weight 2580 lb
Ground Pressure (Rubber) 4.7 psi
Travel Speed 3.5 mph
Travel Speed - Reverse 1.5 mph
CAPACITIES
Fuel Tank 7 gal
HYDRAULIC SYSTEM
Pump Capacity 12 gal/min
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow n/a
DIMENSION
Length 93.1 in
Width 35.6 in
Height 49.1 in
Height to Bucket Hinge Pin 71.2 in
Length of track on ground 34 in
Reach @ Maximum Height 18.2 in
FEATURES
Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Reverse Travel Stop Panel Standard
Wide Track N/A
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Standard
Locations
Ride-on Platform Optional
