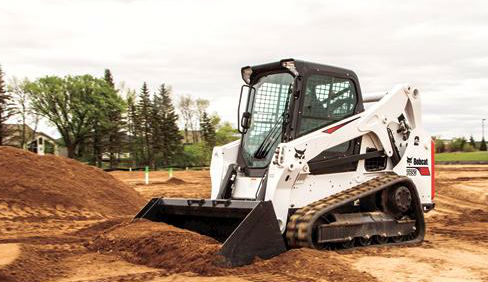

Bobcat T650

Compact Track Loaders T650

Double tap to zoom



Features

Unload and place pallets of materials more easily with the vertical-lift-path Bobcat® T650. Combining power, lift and reach, vertical lift path models handle heavy materials and clear tall truck boxes. The Tier 4 engine delivers powerful performance.

Performance Features

Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.

Uptime Protection Features

With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.

Comfort Features

Climb into the large, comfortable cab and gain unbeatable visibility.

Serviceability Features

Reduce your operating costs through preventative maintenance that gets completed quickly.

Attachment Features

Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.

Specifications

Model Bobcat T650
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine Optional
PERFORMANCE
Rated Operating Capacity (SAE) 2,570 lb
Operating Capacity (50% of Tip) 3670 lb
Tipping Load 7343 lb
Operating Weight 9320 lb
Travel Speed 6.6 mph
Travel Speed (2-speed option) 10.7 mph
Ground Pressure (Rubber) 5.7 psi
CAPACITIES
Fuel Tank 44.1 gal
HYDRAULIC SYSTEM
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 30.5 gal/min
DIMENSION
Length 108.4 in
Length without Attachment 108.4 in
Length with Standard Bucket 136.8 in
Width 72.9 in
Width (with bucket) 74 in
Height 81.3 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 124 in
Reach @ Maximum Height 34.2 in
Turning Radius 87.7 in
Length of track on ground 58.5 in
Track Width 12.6 in
Track Width - Optional 17.7 in
FEATURES
Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Operating Lights Standard
Suspension Seat Standard
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Optional
Ride Control Optional
Horn Standard
