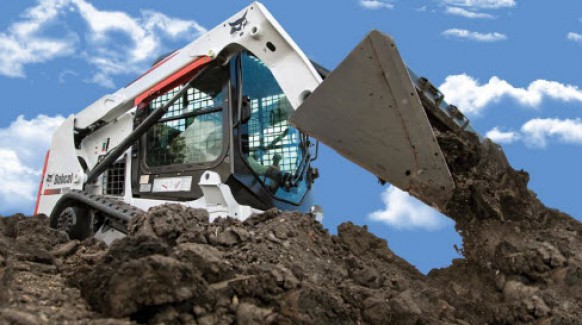

Bobcat T550

Double tap to zoom



Features

The Bobcat® T550 is just 68 in. wide with a bucket, making it a good choice for backfilling and grading. The radius lift path provides greater maximum reach at mid-range heights such as dumping over a wall, backfilling or unloading flatbed trucks. The T550 is powered by a Tier 4 diesel engine.

Performance Features

Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.

Uptime Protection Features

With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.

Comfort Features

Climb into the large, comfortable cab and gain unbeatable visibility.

Serviceability Features

Reduce your operating costs through preventative maintenance that gets completed quickly.

Attachment Features

Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.

Specifications

Model Bobcat T550
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 66 hp
Turbocharged Engine Optional
PERFORMANCE
Rated Operating Capacity (SAE) 1,995 lb
Operating Capacity (50% of Tip) 2850 lb
Tipping Load 5700 lb
Operating Weight 7557 lb
Travel Speed 7.3 mph
Travel Speed (2-speed option) n/a
Ground Pressure (Rubber) 4.9 psi
CAPACITIES
Fuel Tank 36.5 gal
HYDRAULIC SYSTEM
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 17.1 gal/min
Auxiliary High Flow 26.7 gal/min
DIMENSION
Length 133 in
Length without Attachment 104.6 in
Length with Standard Bucket 133 in
Width 67 in
Width (with bucket) 68 in
Height 77.8 in
Height with Operator Cab 77.8 in
Height to Bucket Hinge Pin 114.5 in
Reach @ Maximum Height 19.3 in
Turning Radius 80 in
Length of track on ground 54.1 in
Track Width 12.6 in
Track Width - Optional 15.8 in
FEATURES
Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Operating Lights Standard
Suspension Seat Standard
Two Speed Travel N/A
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Optional
Ride Control Optional
Horn Standard
