Bobcat E35

Double tap to zoom



Features

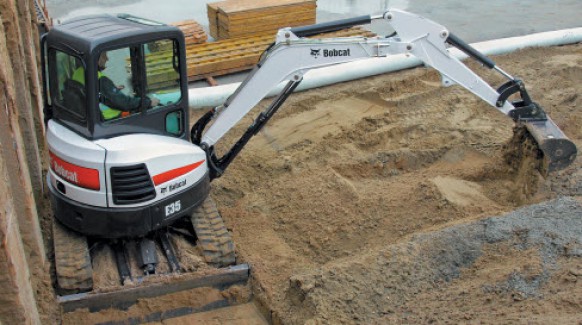

A popular choice in the 3-ton size class, the Bobcat® E35 compact excavator (mini excavator) excels on space-constrained jobsites, such as next to buildings or other obstacles. The Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. The Tier 4-compliant E35 is available with an angle blade option, long arm option or clamp-ready extendable arm option.

Performance Features

Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

Intelligently designed components keep you on the job working.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

The industry leader in attachments and attachment-ready features.

Specifications

Model Bobcat E35 Standard Bobcat E35 Long Arm Bobcat E35 Extandable Arm
ENGINE
Emissions Tier (EPA) Tier 4 Tier 4 Tier 4
Engine Fuel Diesel Diesel Diesel
Maximum Governed RPM 2,400 rpm 2,400 rpm 2,400 rpm
Horsepower 33.5 hp 33.5 hp 33.5 hp
Turbocharged Engine N/A Optional Optional
PERFORMANCE
Operating Weight 7,468 lb 8,143 lb 8,374 lb
Weight Class 3.4 t 3.7 t 3.8 t
Travel Speed - High 2.9 mph 2.9 mph 2.9 mph
Travel Speed - Low 1.6 mph 1.6 mph 1.6 mph
Arm Digging Force 4,589 lbf 3,986 lbf 4,478 lbf
Bucket Digging Force 6,968 lbf 6,968 lbf 6,968 lbf
Rated Lift Capacity 2866 lb 2724 lb 2666 lb
Lift Radius 118 in 118 in 118 in
Boom Swing - Left 75° 75° 75°
Boom Swing - Right 55° 55° 55°
Maximum Dig Depth 10.2 ft 11.2 ft 12.9 ft
Max Dump Height 11 ft 11.6 ft 12.5 ft
Maximum Reach at Ground Level 17.2 ft 18.1 ft 19.7 ft
CAPACITIES
Fuel Tank 14 gal 14 gal 14 gal
HYDRAULIC SYSTEM
Auxiliary Std Flow 16.9 gal/min 16.9 gal/min 16.9 gal/min
Auxiliary Pressure 2,987 psi 2,987 psi 2,987 psi
DIMENSION
Length 189.7 in 190.1 in 190.3 in
Overall Length in Travel Position 189.7 in 190.1 in 190.3 in
Width 69 in 69 in 69 in
Height 95.6 in 95.6 in 95.6 in
Height with Operator Cab 95.6 in 95.6 in 95.6 in
FEATURES
Air Conditioning Optional Optional Optional
Cab Enclosure Optional Optional Optional
Cab Heater Optional Optional Optional
Heater Air Conditioning Optional Optional Optional
Radio Optional Optional Optional
Tail Swing Type Zero Zero Zero
Engine Shutdown Standard Standard Standard
Auxiliary Hydraulics Standard Standard Standard
Secondary Auxiliary Hydraulics Optional Optional Optional
Quick Tach System Standard Standard Standard
Rubber Track Standard Standard Standard
Selectable Auxiliary Hydraulic Flow Standard Standard Standard
Angle Blade Optional Optional Optional
