Bobcat E32i

Double tap to zoom



Features

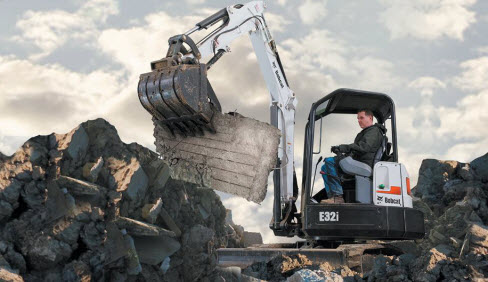

The Bobcat® E32i compact excavator (mini excavator) is an ideal machine if you frequently pass through doors, gates or other tight spaces. Equipped with a conventional tail swing, the E32i is fuel-efficient Tier 4 model in the 3-ton class.  It can be equipped with an optional extendable arm to provide the best of both worlds — power and reach. A clamp-ready extendable arm option is also available.

Performance Features

Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

Intelligently designed components keep you on the job working.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

The industry leader in attachments and attachment-ready features.

Specifications

Model Bobcat E32I
Standard
Bobcat E32I
Long Arm
Bobcat E32I
Extandable Arm
ENGINE
Emissions Tier (EPA) Tier 4 Tier 4 Tier 4
Engine Fuel Diesel Diesel Diesel
Maximum Governed RPM 2,200 rpm 2,200 rpm 2,200 rpm
Horsepower 24.8 hp 24.8 hp 24.8 hp
Turbocharged Engine N/A Optional Optional
PERFORMANCE
Operating Weight 7,183 lb 7,858 lb 8,089 lb
Weight Class 3.2 t 3.6 t 3.7 t
Travel Speed - High 2.9 mph 2.9 mph 2.9 mph
Travel Speed - Low 1.6 mph 1.6 mph 1.6 mph
Arm Digging Force 4,589 lbf 3,986 lbf 4,589 lbf
Bucket Digging Force 6,968 lbf 6,968 lbf 6,968 lbf
Rated Lift Capacity 2537 lb 2481 lb 2370 lb
Lift Radius
118 in
118 in
118 in
Boom Swing - Left
75°
75°
75°
Boom Swing - Right
55°
55°
55°
Maximum Dig Depth 10.2 ft 11.2 ft 12.9 ft
Max Dump Height 11 ft 11.5 ft 12.5 ft
Maximum Reach at Ground Level 16.3 ft 17.4 ft 18.9 ft
CAPACITIES
Fuel Tank
14 gal
14 gal
14 gal
HYDRAULIC SYSTEM
Auxiliary Std Flow
16.9 gal/min
16.9 gal/min
16.9 gal/min
Auxiliary Pressure 2,987 psi 2,987 psi 2,987 psi
DIMENSION
Length 183.5 in 187.5 in 187.7 in
Overall Length in Travel Position 183.5 in 187.5 in 187.7 in
Width 59.8 in 60 in 59.8 in
Height 95.6 in 95.6 in 95.6 in
Height with Operator Cab 95.6 in 95.6 in 95.6 in
FEATURES
Air Conditioning Optional Optional Optional
Cab Enclosure Optional Optional Optional
Cab Heater Optional Optional Optional
Heater Air Conditioning Optional Optional Optional
Radio Optional Optional Optional
Tail Swing Type Conventional Conventional Conventional
Engine Shutdown Standard Standard Standard
Auxiliary Hydraulics Standard Standard Standard
Secondary Auxiliary Hydraulics Optional Optional Optional
Quick Tach System Standard Standard Standard
Rubber Track Standard Standard Standard
Selectable Auxiliary Hydraulic Flow Standard Standard Standard
Angle Blade N/A N/A N/A
