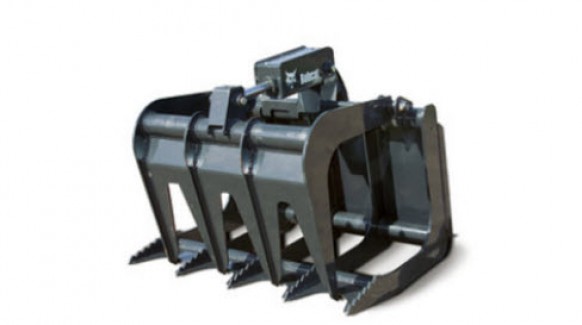

Bobcat Grapple, Root - 48"

Double tap to zoom



Get maximum chomping and ripping power with the root grapple attachment.

Built to be the biggest, baddest biter of them all, the root grapple rips into tough jobs with ease. The heavy-duty design improves the wear life of the grapple, especially when operating in tough land clearing jobs. Inertia-welded cylinder ends permit strong, smooth operation by improving hydraulic cushioning. And a curved, skeletal tooth design allows materials to be picked up without driving the teeth into the ground.

It’s ideal for jobs such as land clearing, landscaping, demolition, construction, rental or buildings and grounds maintenance. Tear it up, bite it off, and spit it out with the root grapple.

Top Tasks

  • Clear rocks, roots, brush, overgrowth and debris



  • Curved Skeletal Tooth Design: Permits material to be picked up without driving teeth into the ground, allowing dirt to fall on site.
  • Fully Enclosed Mounting Frame: Extends wear life by minimizing flexing in the frame area.
  • Inertia-Welded Cylinder Ends: As a Bobcat® exclusive design, the inertia-welded cylinder ends deliver strong, smooth operation by improving hydraulic cushioning at the end of the stroke.
  • Dual Cylinders (Large Grapples Only): With tough Bobcat®-built cylinders, dual cylinders provide the ability to secure uneven loads. Bobcat grapples provide the highest clamping forces in the industry.


Model Grapple, Root - 48"
Operating Weight 371 lb
Length 30.7 in
Width 48 in
Height 29.8 in
Number of Fork Teeth (Factory) 7
Number of Fork Teeth (Possible) 7
Grapple Width 48 in
Number of Grapple Tines 1
Open Height 41.7 in
Open Length 34.7 in
Closed Height 29.8 in
Closed Length 34.7 in
