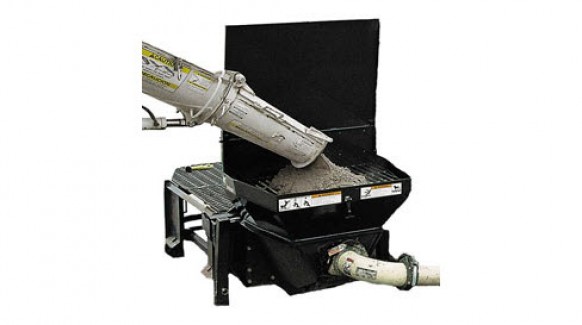

Bobcat Concrete Pump

Double tap to zoom



Features

The Bobcat® concrete pump simplifies pouring concrete in difficult-to-reach locations.

There's no more need for mud buggies, loaders with buckets, wheelbarrows, shovels or chutes. Depending on hose length and diameter, and conditions such as slump, additives and aggregate size and type, this powerful attachment can pump concrete as far as 250 feet horizontally and up to two stories vertically.

With a standard hydraulic flow loader, the pump can place concrete up to 18 cubic yards per hour. A high-flow loader can place concrete up to 28 cubic yards per hour.

Top Tasks

  • Pour concrete in difficult-to-reach locations

How It Works

Attach your Bobcat® loader to either side of the concrete pump and position the unit where you need it. Then connect the hoses, feed the concrete mix into the hopper and pump.

Features

  • Versatility: Dual mounting positions allow the hopper to be placed on the right or left side of the loader
  • Production: Places up to 28 cubic yards per hour, depending on hydraulic flow.
  • Control Panel: Swivels for easier operation.
  • Remote Attachment Control: Start and stop the loader, start, stop and reverse the pump and turn the high-flow hydraulics on/off from outside the cab.
  • Legs: Adjust quickly to match uneven terrain.
  • Protective Guard Panel: Strains larger objects from concrete mix.

Specifications

Model Concrete Pump
Operating Weight 2200 lb
Length 102.9 in
Width 47.9 in
Height 54.9 in
Concrete Cylinder Diameter 6 in
Concrete Cylinder Stroke 24 in
Maximum Aggregate Size 1.5 in
Maximum Concrete Pressure 750 psi
Swing Tube Diameter 5 in
Swing Valve Cylinder Diameter 3 in
Swing Valve Cylinder Stroke 6 in
Pumping Cylinder Diameter 3 in
Pumping Rate Up to 30 cu. Yd. (23 cu. M.) per hour*
Vertical Pumping Height 50 ft
Horizontal Pumping Distance 250 ft
Hopper Capacity 10 ft³
