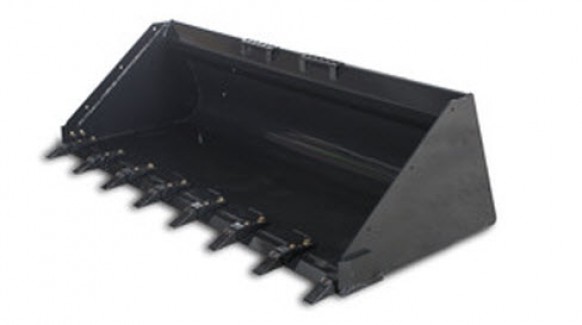

Bobcat C/I Heavy Duty Bucket - 88"
Bucket, Heavy/Severe Duty Const./Ind. (C/I) C/I Heavy Duty Bucket - 88"
Double tap to zoom
These buckets are built even stronger than construction/industrial (C/I) and low profile buckets. Strength is added to key are
- Stronger mounting frame
- Double-walled top crossmember
- Thicker and taller side cutting edges
Capacity has also been increased over construction/industrial (C/I) and low profile buckets to take full advantage of the increased capacities of today’s larger machines.
These buckets give operators a good view of the cutting edge and good breakout force for improved digging and bucket filling.
- Heavy-duty grading and leveling
- Material handling
Bucket Backs Comparison
The back of a bucket is subjected to extreme force as you push into a pile, lift materials and back drag. Which buckets have the most reinforcement in the right places? Compare them in this video.
Bucket Bottoms Comparison
If a bucket bottom isn't built well, the cutting edge will flex or even permanently bow. You need a strong bucket bottom to cut a grade, flatten your work area or scrape material off hard surfaces. See the strong Bobcat bucket bottom and its unique waffle-plate design.
With Bobcat low profile and construction/industrial buckets, you can easily add custom options like teeth and grapples using simple tools. With other buckets, you must drill holes or permanently weld those options. Watch how Bobcat offers fast, convenient customization.
Your bucket must withstand severe applications. In this test, watch how different buckets react to the forces typically placed upon them by a loader. See which bucket has the least deflection and the most strength.
- Round back design: Enhances bucket loading and cleanout
- Waffle type skid plate: Reinforces the cutting edge and adds strength to the bottom of the bucket for longer life; provides additional strength with minimal additional weight
- Channel design: Top and bottom bucket sections are a formed channel design to provide extra strength and durability; top section is double-walled
- 3/8” thick mounting frame: Stronger to withstand higher breakout forces
- Standard bolt-on corner cutting edges: Protect the corners of your bucket
- 3/4 in. x 8 in. cutting edge: HD models
- 1 in. X 8 in. cutting edge: SD models
Low Profile BucketSimilar in design to a C/I bucket, but with slightly less breakout force. Has a longer bottom to provide excellent cutting edge visibility and increased capacity. This is the most popular Bobcat bucket
Dirt BucketThe standard bucket on smaller Bobcat loaders. Provides excellent breakout force and fair visibility. Similar to the general purpose bucket, but with a shorter bottom.
General Purpose BucketSimilar in design to a dirt bucket, but with a longer bottom to provide good cutting edge visibility and increased capacity. The standard bucket for Toolcat™ machines and a good choice for low-hour users on some larger loaders.
Fertilizer BucketFertilizer buckets have large capacities and more roll-back range. The greater roll-back allows granular materials to be easily held in the bucket by minimizing spillage over the front edge. Applications include fertilizer and grain handling.
Snow/Light Material BucketThese are large capacity buckets for loading and handling various light materials such as snow and mulch. They have high backs to help with pushing snow, and straight sides to penetrate snow and mulch piles.
Ideal for everything from tough digging to material handling. Construction and Industrial buckets offer fair cutting edge visibility and excellent bucket breakout force for better digging and easier bucket filling. Bolt-on grapple attachment adds to versatility.
|Model||C/I Heavy Duty Bucket - 88"|
|Operating Weight||775 lb|
|Number of Teeth||9 Bolt-on|
|ISO Heaped Capacity||24.8 ft³|
|ISO Struck Capacity||18.2 ft³|
|Predrilled For||Bolt-on Edges or Teeth|
