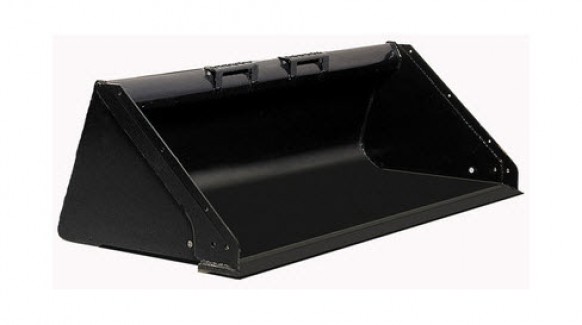

Bobcat Const./Ind. Bucket - 74"
Ideal for everything from tough digging to material handling. Construction and Industrial buckets offer fair cutting edge visibility and excellent bucket breakout force for better digging and easier bucket filling. Bolt-on grapple attachment adds to versatility.
Bucket Backs Comparison
The back of a bucket is subjected to extreme force as you push into a pile, lift materials and back drag. Which buckets have the most reinforcement in the right places? Compare them in this video.
Bucket Bottoms Comparison
If a bucket bottom isn't built well, the cutting edge will flex or even permanently bow. You need a strong bucket bottom to cut a grade, flatten your work area or scrape material off hard surfaces. See the strong Bobcat bucket bottom and its unique waffle-plate design.
With Bobcat low profile and construction/industrial buckets, you can easily add custom options like teeth and grapples using simple tools. With other buckets, you must drill holes or permanently weld those options. Watch how Bobcat offers fast, convenient customization.
Your bucket must withstand severe applications. In this test, watch how different buckets react to the forces typically placed upon them by a loader. See which bucket has the least deflection and the most strength.
- Material handling
Low Profile BucketSimilar in design to a C/I bucket, but with slightly less breakout force. Has a longer bottom to provide excellent cutting edge visibility and increased capacity. This is the most popular Bobcat bucket.
Dirt BucketsThe standard bucket on smaller Bobcat loaders. Provides excellent breakout force and fair visibility. Similar to the general purpose bucket, but with a shorter bottom.
General Purpose BucketsSimilar in design to a dirt bucket, but with a longer bottom to provide good cutting edge visibility and increased capacity. The standard bucket for Toolcat™ machines and a good choice for low-hour users on some larger loaders.
Heavy-Duty and Severe-Duty C/I BucketDesigned for larger Bobcat loaders and compact track loaders, these buckets feature a higher back and longer bottom than standard C/I buckets and have additional strength in key areas.
Fertilizer BucketFertilizer buckets have large capacities and more roll-back range. The greater roll-back allows granular materials to be easily held in the bucket by minimizing spillage over the front edge. Applications include fertilizer and grain handling.
Snow/Light Material BucketThese are large capacity buckets for loading and handling various light materials such as snow and mulch. They have high backs to help with pushing snow, and straight sides to penetrate snow and mulch piles.
|Model||Const./Ind. Bucket - 74"|
|Operating Weight||533 lb|
|Number of Teeth||8 Bolt-on|
|ISO Heaped Capacity||15.4 ft³|
|ISO Struck Capacity||11.5 ft³|
|Predrilled For||Bolt-on Edges or Teeth|
