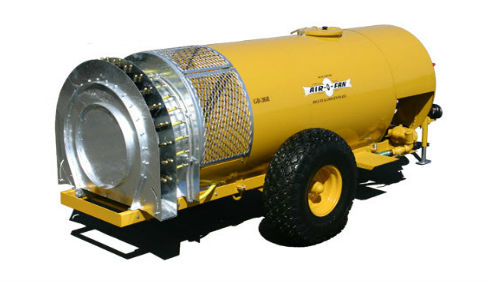

Air-O-Fan GB-36R 500 & 600 Gallon

Double tap to zoom



Features

Standard Features

  • 500 gallon 304 stainless steel tank
  • 36 GPM / 600 PSI Comet ® diaphragm pump
  • 36” diameter, 8-blade axial flow steel fan
  • 2-speed gearbox with neutral
  • Heavy duty PTO shaft
  • AOF DK turning hitch
  • Tank drive shaft with rundown clutch
  • 1” 304 stainless steel mechanical agitation
  • Cable type remote control
  • 304 stainless steel strainers
  • Teejet® ceramic nozzles
  • Galvanized fan housing
  • Composite nylon adjustable air vanes with specialty valves
  • 13.5Lx16.1 ANS field and turf tires
  • Heavy duty adjustable hubs and spindles



Options

  • 1,000 gallon machine upgrade
  • 600 gallon 304 stainless steel tank
  • 100 GPM / 145 PSI Myers® 2-stage centrifugal pump
  • 53 GPM / 600 PSI Comet® pump (Model IDS 2200)
  • 2-point turning hitch
  • Hydraulic and electric spray control valves
  • 2" and 3" stainless steel fill connections
  • Tank drain plumbed with value
  • Indented tank (60" wide)
  • Multiple tire configurations
  • Tree targeting, flow monitoring, and rate controlling systems

Specifications

  • Length............500 gallon = 15' / 600 gallon = 15' 6"
  • Width..............500 gallon = 6' 6" / 600 gallon = 6' 9"
  • Height.............62" to 68"
  • Weight............500 gallon = 2,650 pounds / 600 gallon = 2,700 pounds
  • Air Velocity......130 mph (approximate)



PTO Horse Power Requirements:  80 - 100
